MATH 427: Regularization & Model Tuning

Eric Friedlander

Computational Set-Up

library(tidyverse)
library(tidymodels)
library(knitr)
library(fivethirtyeight) # for candy rankings data

tidymodels_prefer()

set.seed(427)

Data: Candy

The data for this lecture comes from the article FiveThirtyEight The Ultimate Halloween Candy Power Ranking by Walt Hickey. To collect data, Hickey and collaborators at FiveThirtyEight set up an experiment people could vote on a series of randomly generated candy match-ups (e.g. Reese’s vs. Skittles). Click here to check out some of the match ups.

The data set contains 12 characteristics and win percentage from 85 candies in the experiment.

Data: Candy

glimpse(candy_rankings)

Rows: 85
Columns: 13
$ competitorname   <chr> "100 Grand", "3 Musketeers", "One dime", "One quarter…
$ chocolate        <lgl> TRUE, TRUE, FALSE, FALSE, FALSE, TRUE, TRUE, FALSE, F…
$ fruity           <lgl> FALSE, FALSE, FALSE, FALSE, TRUE, FALSE, FALSE, FALSE…
$ caramel          <lgl> TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, FALSE,…
$ peanutyalmondy   <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, TRUE, TRUE, …
$ nougat           <lgl> FALSE, TRUE, FALSE, FALSE, FALSE, FALSE, TRUE, FALSE,…
$ crispedricewafer <lgl> TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE…
$ hard             <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALS…
$ bar              <lgl> TRUE, TRUE, FALSE, FALSE, FALSE, TRUE, TRUE, FALSE, F…
$ pluribus         <lgl> FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE…
$ sugarpercent     <dbl> 0.732, 0.604, 0.011, 0.011, 0.906, 0.465, 0.604, 0.31…
$ pricepercent     <dbl> 0.860, 0.511, 0.116, 0.511, 0.511, 0.767, 0.767, 0.51…
$ winpercent       <dbl> 66.97173, 67.60294, 32.26109, 46.11650, 52.34146, 50.…

Data Cleaning

candy_rankings_clean <- candy_rankings |>
  select(-competitorname) |>
  mutate(sugarpercent = sugarpercent*100, # convert proportions into percentages
         pricepercent = pricepercent*100, # convert proportions into percentages
         across(where(is.logical), ~ factor(.x, levels = c("FALSE", "TRUE")))) # convert logicals into factors

Data Cleaning

glimpse(candy_rankings_clean)

Rows: 85
Columns: 12
$ chocolate        <fct> TRUE, TRUE, FALSE, FALSE, FALSE, TRUE, TRUE, FALSE, F…
$ fruity           <fct> FALSE, FALSE, FALSE, FALSE, TRUE, FALSE, FALSE, FALSE…
$ caramel          <fct> TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, FALSE,…
$ peanutyalmondy   <fct> FALSE, FALSE, FALSE, FALSE, FALSE, TRUE, TRUE, TRUE, …
$ nougat           <fct> FALSE, TRUE, FALSE, FALSE, FALSE, FALSE, TRUE, FALSE,…
$ crispedricewafer <fct> TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE…
$ hard             <fct> FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALS…
$ bar              <fct> TRUE, TRUE, FALSE, FALSE, FALSE, TRUE, TRUE, FALSE, F…
$ pluribus         <fct> FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, TRUE…
$ sugarpercent     <dbl> 73.2, 60.4, 1.1, 1.1, 90.6, 46.5, 60.4, 31.3, 90.6, 6…
$ pricepercent     <dbl> 86.0, 51.1, 11.6, 51.1, 51.1, 76.7, 76.7, 51.1, 32.5,…
$ winpercent       <dbl> 66.97173, 67.60294, 32.26109, 46.11650, 52.34146, 50.…

Data Splitting

candy_split <- initial_split(candy_rankings_clean, strata = winpercent)
candy_train <- training(candy_split)
candy_test <- testing(candy_split)

Model Tuning

Tuning Parameters

Tuning Parameters or Hyperparameters are parameters that cannot (or should not) be estimated when a model is being trained
These parameters control something about the learning process and changing them will result in a different model when fit to the full training data (i.e. after cross-validation)
Frequently: tuning parameters control model complexity
Example: \(\lambda\) in LASSO and Ridge regression
Today: How to choose our tuning parameters?

Question

Which of the following are tuning parameters:
- \(\beta_0\): the intercept of linear regression
- \(k\) in KNN
- step size in gradient descent
- The number of folds in cross-validation
- Type of distance to use in KNN (i.e. rectangular vs. Gower’s vs. weighted etc)

Basic Idea

Use CV to try out a bunch of different tuning parameters and choose the “best” one
How do we choose which tuning parameters to try?
Two general approaches:
- Grid Search
- Iterative Search

Grid Search

Create a grid of tuning parameters and try out each combination
Types of grids:
- Regular Grid: tuning parameter values are spaced deterministically using a linear or logarithmic scale and all combinations of parameters are used (mostly what you want to use in this class)
- Irregular Grids: tuning parameter values are chosen stochastically
  - Use when you have A LOT of parameters

Grid Search in R

Take advantage of package dials which is part of the tidyverse
- Set every tuning variable equal to tune()

LASSO and Ridge in R

ols <- linear_reg() |>
  set_engine("lm")

ridge <- linear_reg(mixture = 0, penalty = tune()) |> # penalty set's our lambda
  set_engine("glmnet")

lasso <- linear_reg(mixture = 1, penalty = tune()) |> # penalty set's our lambda
  set_engine("glmnet")

Create Recipe

Note: no tuning variables in this case

lm_preproc <- recipe(winpercent ~ . , data = candy_train) |>
  step_dummy(all_nominal_predictors()) |>
  step_normalize(all_numeric_predictors())

Create workflows

generic_wf <- workflow() |> add_recipe(lm_preproc)
ols_wf <- generic_wf |> add_model(ols)
ridge_wf <- generic_wf |> add_model(ridge)
lasso_wf <- generic_wf |> add_model(lasso)

Create Metric Set

candy_metrics <- metric_set(rmse, rsq)

Create Folds

# Since sample size is so small, not using stratification
candy_folds <- vfold_cv(candy_train, v = 2, repeats = 10)

Grid Search in R

Take advantage of package dials which is part of the tidyverse
- Set every tuning variable equal to tune()
- Generate grid for hyperparameters

Generate Grid

# note that dials treats penalty on a log10 scale
penalty_grid <- grid_regular(penalty(range = c(-10, 2)), # I had to play around with these
                             levels = 10)

penalty_grid |> head() |>  kable(digits = 11, format.args = list(scientific = TRUE))

penalty
1.000000e-10
2.150000e-09
4.642000e-08
1.000000e-06
2.154435e-05
4.641589e-04

penalty_grid |> tail() |>  kable()

penalty
0.0000215
0.0004642
0.0100000
0.2154435
4.6415888
100.0000000

Regular Grid Search in R

Take advantage of package dials which is part of the tidyverse
- Set every tuning variable equal to tune()
- Generate grid for hyperparameters using grid_regular
- Tune your model: fit all hyperparameter combination on resamples using tune_grid

Tune Models

tuning_ridge_results <- tune_grid(
  ridge_wf,
  resamples= candy_folds,
  grid = penalty_grid
)

tuning_lasso_results <- tune_grid(
  lasso_wf,
  resamples = candy_folds,
  grid = penalty_grid
)

Regular Grid Search in R

Take advantage of package dials which is part of the tidyverse
- Set every tuning variable equal to tune()
- Generate grid for hyperparameters using grid_regular
- Tune your model: fit all hyperparameter combination on resamples using tune_grid
- Visualize and Choose final model

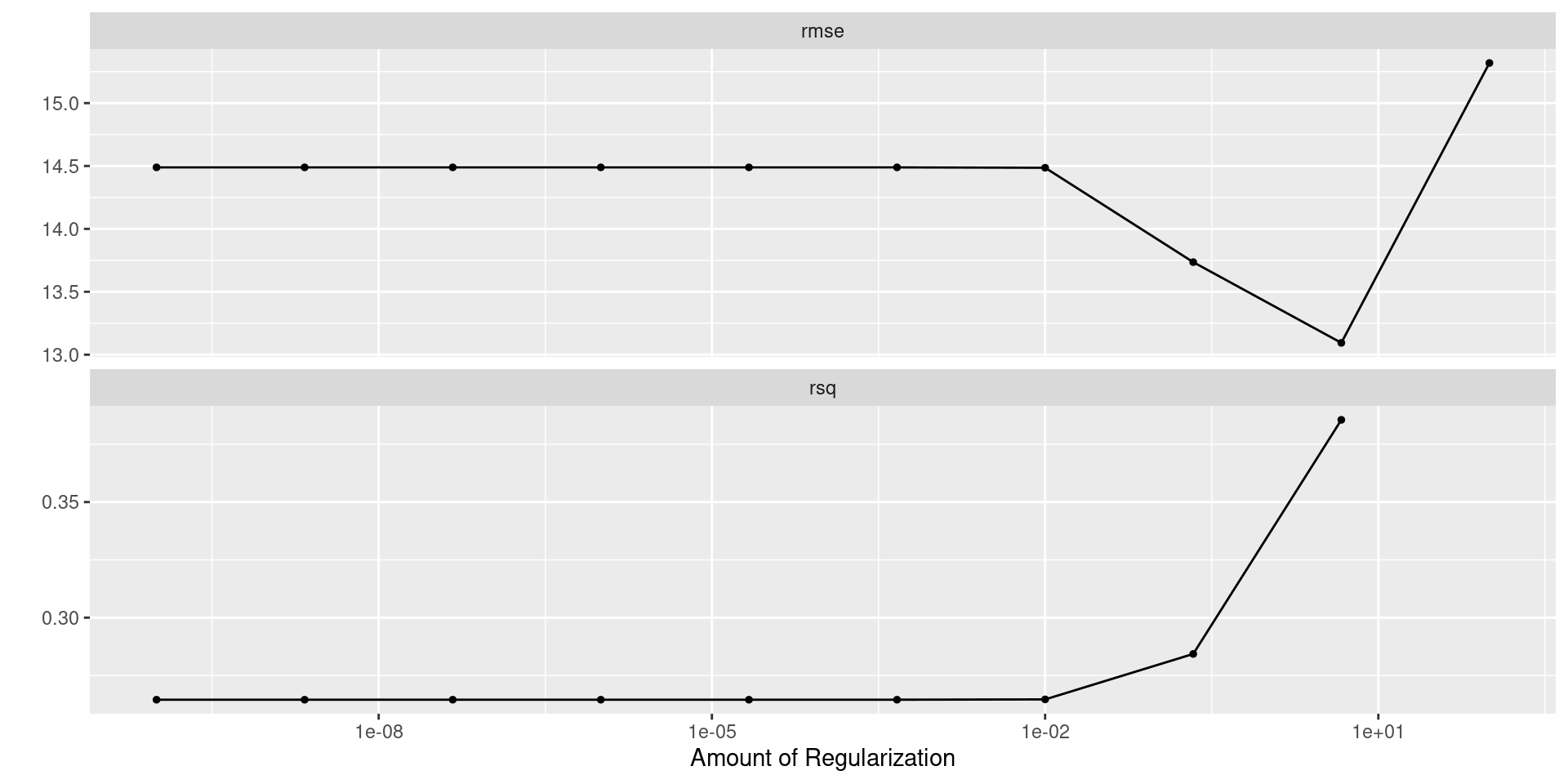

Visualizing Results: Ridge

autoplot(tuning_ridge_results)

Selecting Best Model: Ridge

Best RMSE

best_rmse_ridge <- tuning_ridge_results |>
  select_best(metric = "rmse")
best_rmse_ridge |> kable(digits = 2)

penalty	.config
4.64	Preprocessor1_Model09

Best \(R^2\)

best_rsq_ridge <- tuning_ridge_results |>
  select_best(metric = "rsq",)
best_rsq_ridge |> kable(digits = 2)

penalty	.config
100	Preprocessor1_Model10

Which should be use?

Finalize Model

RMSE estimate is less flexible and seems to be sacrificing less \(R^2\) than the opposite

ridge_rmse_final <- finalize_workflow(ridge_wf, best_rmse_ridge)
ridge_rmse_fit <- fit(ridge_rmse_final, data = candy_train)
tidy(ridge_rmse_fit) |>
  kable()

term	estimate	penalty
(Intercept)	49.8221817	4.641589
sugarpercent	1.6105235	4.641589
pricepercent	-0.8755351	4.641589
chocolate_TRUE.	5.5626786	4.641589
fruity_TRUE.	0.8290067	4.641589
caramel_TRUE.	0.9577679	4.641589
peanutyalmondy_TRUE.	2.8412296	4.641589
nougat_TRUE.	0.5018516	4.641589
crispedricewafer_TRUE.	1.6202899	4.641589
hard_TRUE.	-1.2156466	4.641589
bar_TRUE.	1.4669984	4.641589
pluribus_TRUE.	0.4265386	4.641589

Visualizing Results: LASSO

autoplot(tuning_lasso_results)

Selecting Best Model: LASSO

Best RMSE

best_rmse_lasso <- tuning_lasso_results |>
  select_best(metric = "rmse")
best_rmse_lasso |> kable(digits = 2)

penalty	.config
4.64	Preprocessor1_Model09

Best \(R^2\)

best_rsq_lasso <- tuning_lasso_results |>
  select_best(metric = "rsq")
best_rsq_lasso |> kable(digits = 2)

penalty	.config
4.64	Preprocessor1_Model09

Which should be use?

Finalize Model

RMSE estimate is less flexible and seems to be sacrificing less \(R^2\) than the opposite

lasso_rmse_final <- finalize_workflow(lasso_wf, best_rmse_lasso)
lasso_rmse_fit <- fit(lasso_rmse_final, data = candy_train)
tidy(lasso_rmse_fit) |>
  filter(estimate != 0) |>
  kable()

term	estimate	penalty
(Intercept)	49.822182	4.641589
chocolate_TRUE.	5.165031	4.641589

Using Parsimony as a Tie-Breaker

Good heuristic: One-Standard Error Rule
- Use resampling to estimate error metrics
- Compute standard error for error metrics
- Select most parsimonious model that is within one standard error of the best performance metric

Selecting Best Model: Ridge

Best RMSE

best_ose_rmse_ridge <- tuning_ridge_results |>
  select_by_one_std_err(metric = "rmse", desc(penalty)) # why are we descending
best_ose_rmse_ridge |> kable(digits = 2)

penalty	.config
4.64	Preprocessor1_Model09

Best \(R^2\)

bse_ose_rsq_ridge <- tuning_ridge_results |>
  select_by_one_std_err(metric = "rsq", desc(penalty))
bse_ose_rsq_ridge |> kable(digits = 2)

penalty	.config
100	Preprocessor1_Model10

Which should be use?

Visualizing Results: Ridge

autoplot(tuning_ridge_results)

Finalize Model

RMSE estimate is less flexible and seems to be sacrificing less \(R^2\) than the opposite

ridge_rmse_final <- finalize_workflow(ridge_wf, best_ose_rmse_ridge)
ridge_rmse_fit <- fit(ridge_rmse_final, data = candy_train)
tidy(ridge_rmse_fit) |>
  kable()

term	estimate	penalty
(Intercept)	49.8221817	4.641589
sugarpercent	1.6105235	4.641589
pricepercent	-0.8755351	4.641589
chocolate_TRUE.	5.5626786	4.641589
fruity_TRUE.	0.8290067	4.641589
caramel_TRUE.	0.9577679	4.641589
peanutyalmondy_TRUE.	2.8412296	4.641589
nougat_TRUE.	0.5018516	4.641589
crispedricewafer_TRUE.	1.6202899	4.641589
hard_TRUE.	-1.2156466	4.641589
bar_TRUE.	1.4669984	4.641589
pluribus_TRUE.	0.4265386	4.641589

Visualizing Results: LASSO

autoplot(tuning_lasso_results)

Selecting Best Model: Ridge

Best RMSE

bse_ose_rmse_lasso <- tuning_lasso_results |>
  select_by_one_std_err(metric = "rmse", desc(penalty)) # why are we descending
bse_ose_rmse_lasso |> kable(digits = 2)

penalty	.config
4.64	Preprocessor1_Model09

Best \(R^2\)

bse_ose_rsq_lasso <- tuning_lasso_results |>
  select_by_one_std_err(metric = "rsq", desc(penalty)) # why are we descending
bse_ose_rsq_lasso |> kable(digits = 2)

penalty	.config
4.64	Preprocessor1_Model09

Which should be use?

Finalize Model

RMSE estimate is less flexible and seems to be sacrificing less \(R^2\) than the opposite

lasso_rmse_final <- finalize_workflow(lasso_wf, bse_ose_rmse_lasso)
lasso_rmse_fit <- fit(lasso_rmse_final, data = candy_train)
tidy(lasso_rmse_fit) |>
  filter(estimate != 0) |>
  kable()

term	estimate	penalty
(Intercept)	49.822182	4.641589
chocolate_TRUE.	5.165031	4.641589

Using the Test Set as a Tie Breaker

Once you’ve found you “best” candidate from several different classes of model, it’s ok to compare on test set
In this case, we have our best ridge and our best lasso model
Main this to avoid… LOTS of comparisons on your test set

Using the Test Set as a Tie Breaker

candy_test_wpreds <- candy_test |>
  mutate(ridge_preds = predict(ridge_rmse_fit, new_data = candy_test)$.pred,
         lasso_preds = predict(lasso_rmse_fit, new_data = candy_test)$.pred)
candy_test_wpreds |> rmse(estimate = ridge_preds, truth = winpercent)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        10.6

candy_test_wpreds |> rmse(estimate = lasso_preds, truth = winpercent)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        12.0

candy_test_wpreds |> rsq(estimate = ridge_preds, truth = winpercent)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rsq     standard       0.476

candy_test_wpreds |> rsq(estimate = lasso_preds, truth = winpercent)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rsq     standard       0.341

Ridge Wins!

Good strategies

First use coarse grid with large range to find general area
- Then use fine grid with small range to fine tune
- Use iterative method to fine tune

Iterative Methods (Bonus Content)

Brief Overview

Basic Idea: iterative select parameter values to choose based on how previous ones have done
TMWR gives two examples:
- Bayesian search
- Stochastic Annealing
Both require an understanding of multivariate probability distributions

Bayesian Search: GP

Assume performance metrics follow a Gaussian process… dafuq
Consider two sets of tuning parameters: \(x_1 = (\lambda_1, k_1)\) and \(x_2 = (\lambda_2, k_2)\)
Let \(Y_1\) and \(Y_2\) be random variables representing the performance metric at these \(x\)’s
Assume \(\text{Cov}(Y_1, Y_2)\) depends on how far apart \(x_1\) and \(x_2\)
- Covariance should decrease the further apart \(x_1\) and \(x_2\) are
- This covariance function is typically parameterized and estimated from an initial tuning grid

Bayesian Search: Acquisition Function

GP process gives us predicted mean and variance of performance metrics
Imagine two scenario’s:
- 1: Predicted mean is slightly better than current parameter choice and variance is low
  - Low-Risk, Low-Reward
- 2: Predicted mean is slightly worst than current parameter choice but variance is high
  - High-Risk, High-Reward
How do we balance?
Two competing goals: Exploration (got toward high variance) and Exploitation (go toward best mean)
Acquisition function: balances these two goals (several to choose from)
tmwr

Bayesian Search: `tidymodels`

ridge_params <- ridge_wf |>
  extract_parameter_set_dials() |>
  update(penalty = penalty(c(-2, 1)))

bayes_ridge <- ridge_wf |>
  tune_bayes(
    resamples = candy_folds,
    metrics = candy_metrics, # first metrics is what's optimized (rmse in this case)
    initial = tuning_ridge_results,
    param_info = ridge_params,
    iter = 25
  )

Bayesian Search: `tidymodels`

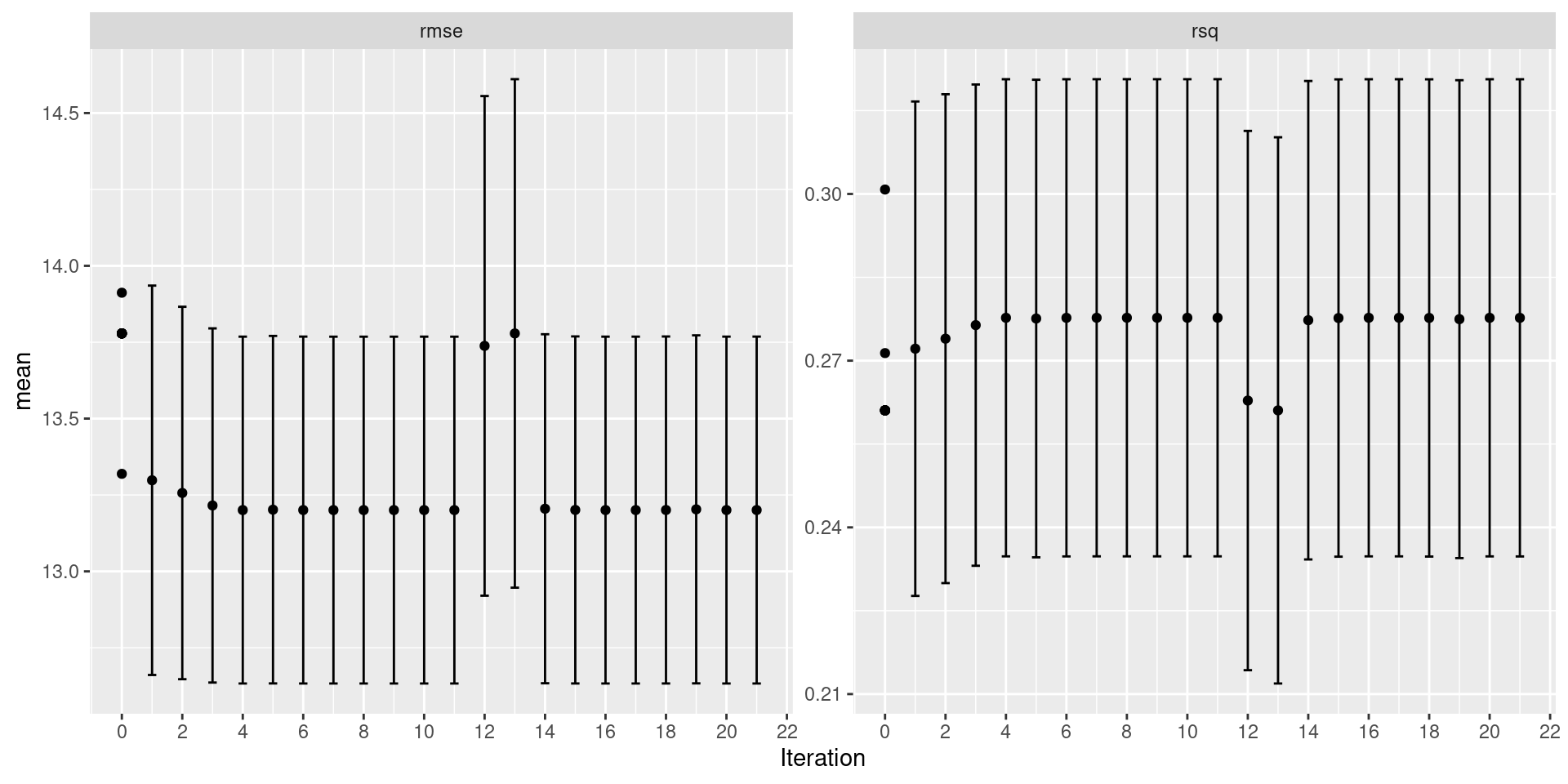

autoplot(bayes_ridge, type = "performance")

Bayesian Search: `tidymodels`

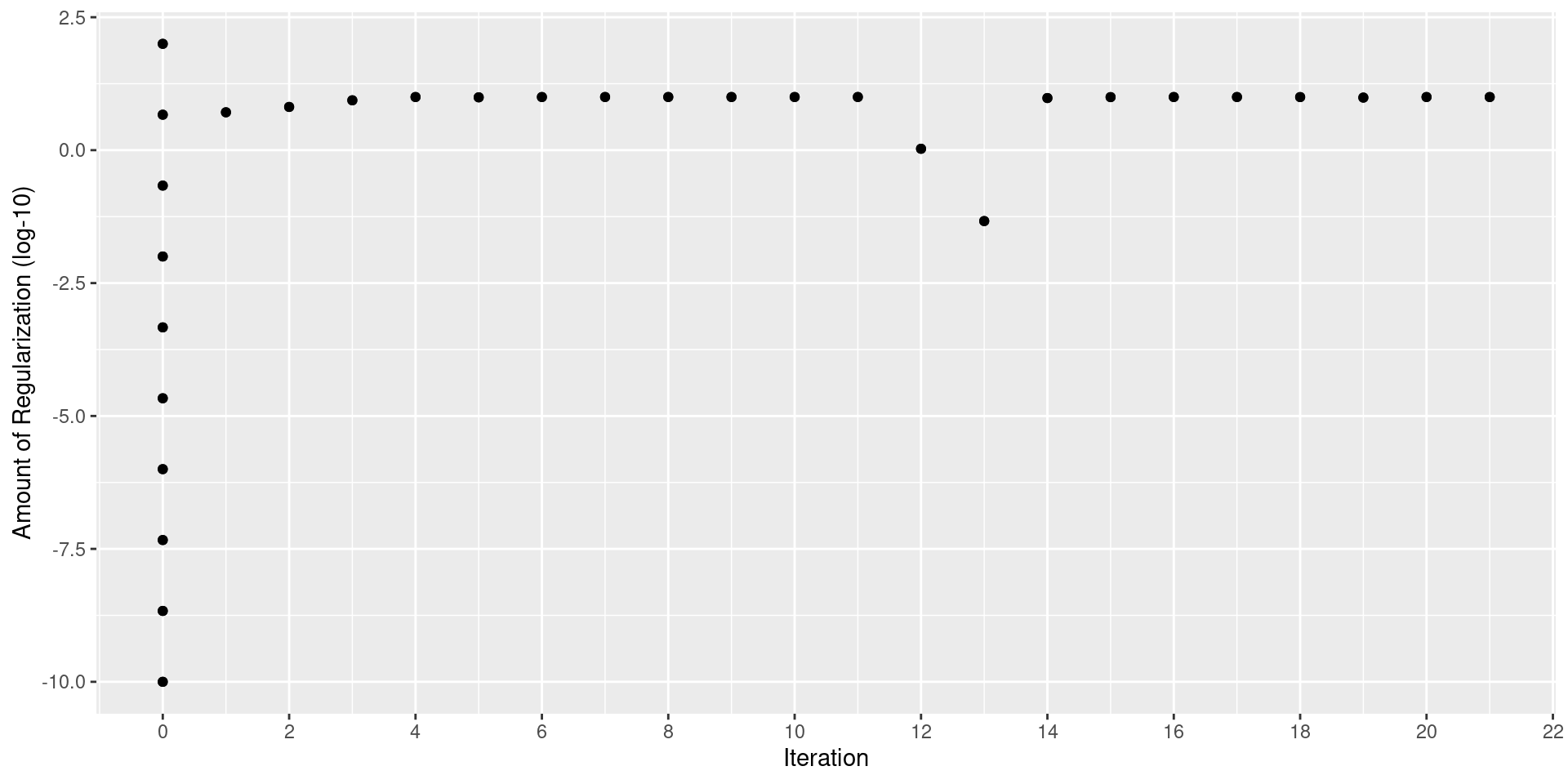

autoplot(bayes_ridge, type = "parameters")

Bayesian Search: `tidymodels`

show_best(bayes_ridge) |> kable()

penalty	.metric	.estimator	mean	n	std_err	.config	.iter
9.999186	rmse	standard	13.20055	20	0.2720582	Iter11	11
9.999034	rmse	standard	13.20055	20	0.2720587	Iter8	8
9.996720	rmse	standard	13.20057	20	0.2720676	Iter7	7
9.996350	rmse	standard	13.20057	20	0.2720690	Iter9	9
9.995326	rmse	standard	13.20058	20	0.2720729	Iter10	10

Bayesian Search: `tidymodels`

lasso_params <- lasso_wf |>
  extract_parameter_set_dials() |>
  update(penalty = penalty(c(-2,1)))

bayes_lasso <- lasso_wf |>
  tune_bayes(
    resamples = candy_folds,
    metrics = candy_metrics, # first metrics is what's optimized (rmse in this case)
    initial = tuning_lasso_results,
    param_info = lasso_params,
    iter = 25
  )

Bayesian Search: `tidymodels`

autoplot(bayes_lasso, type = "performance")

Bayesian Search: `tidymodels`

autoplot(bayes_lasso, type = "parameters")

Bayesian Search: `tidymodels`

show_best(bayes_lasso) |> kable()

penalty	.metric	.estimator	mean	n	std_err	.config	.iter
2.936401	rmse	standard	12.76520	20	0.3059454	Iter16	16
2.937813	rmse	standard	12.76520	20	0.3059406	Iter20	20
2.934824	rmse	standard	12.76520	20	0.3059506	Iter19	19
2.940832	rmse	standard	12.76521	20	0.3059305	Iter25	25
2.932606	rmse	standard	12.76521	20	0.3059580	Iter22	22

Simulated Annealing

Does anyone know what annealing is in Physics/Material Science?
Start with initial parameter combination \(x_0\)(think gradient descent)
Embark on random walk… in each step \(i\)
- Consider small perturbation from \(x_{i-1}\)… let’s call it \(x_{i-1}^{\epsilon}\)
- Get performance for \(x_{i-1}^\epsilon\)
- If performance is better set \(x_i = x_{i-1}^\epsilon\)
- If performance is worse set \(x_i = x_{i-1}^\epsilon\) with probability \(\exp(-c\times D_i\times i)\)
  - \(c\) is user specified constant called cooling coefficient
  - \(D_i\) percent difference between old and new
- Otherwise \(x_i = x_{i-1}\)
Idea:
- start hot: likely to accept suboptimal parameter combinations and move around
- cools over time: decrease number sub-optimal acceptances

Simulated Annealing: `tidymodels`

library(finetune)
ridge_sim_anneal <- ridge_wf |>
  tune_sim_anneal(
    resamples = candy_folds,
    metrics = candy_metrics, # first metric is what's optimized (rmse in this case)
    initial = tuning_ridge_results,
    param_info = ridge_params,
    iter = 50
  )

Simulated Annealing `tidymodels`

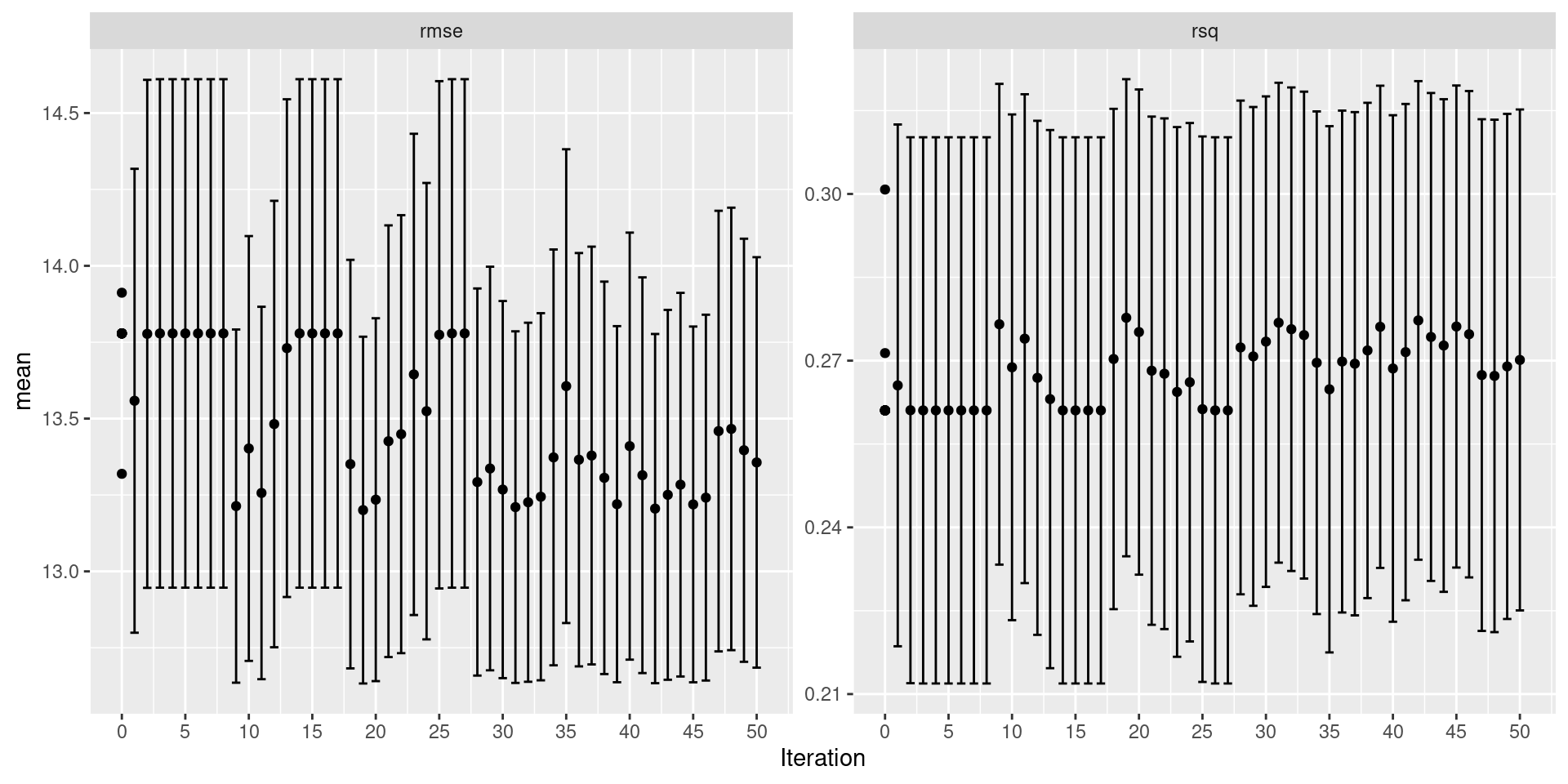

autoplot(ridge_sim_anneal, type = "performance")

Simulated Annealing `tidymodels`

autoplot(ridge_sim_anneal, type = "parameters")

Simulated Annealing `tidymodels`

show_best(ridge_sim_anneal) |> kable()

penalty	.metric	.estimator	mean	n	std_err	.config	.iter
10.000000	rmse	standard	13.20054	20	0.2720551	Iter19	19
9.513817	rmse	standard	13.20542	20	0.2739433	Iter42	42
9.079220	rmse	standard	13.21026	20	0.2758191	Iter31	31
8.818478	rmse	standard	13.21363	20	0.2770621	Iter9	9
8.415657	rmse	standard	13.21916	20	0.2790967	Iter45	45

Simulated Annealing: `tidymodels`

lasso_sim_anneal <- ridge_wf |>
  tune_sim_anneal(
    resamples = candy_folds,
    metrics = candy_metrics, # first metrics is what's optimized (rmse in this case)
    initial = tuning_lasso_results,
    param_info = lasso_params,
    iter = 50
  )

Simulated Annealing `tidymodels`

autoplot(lasso_sim_anneal, type = "performance")

Simulated Annealing `tidymodels`

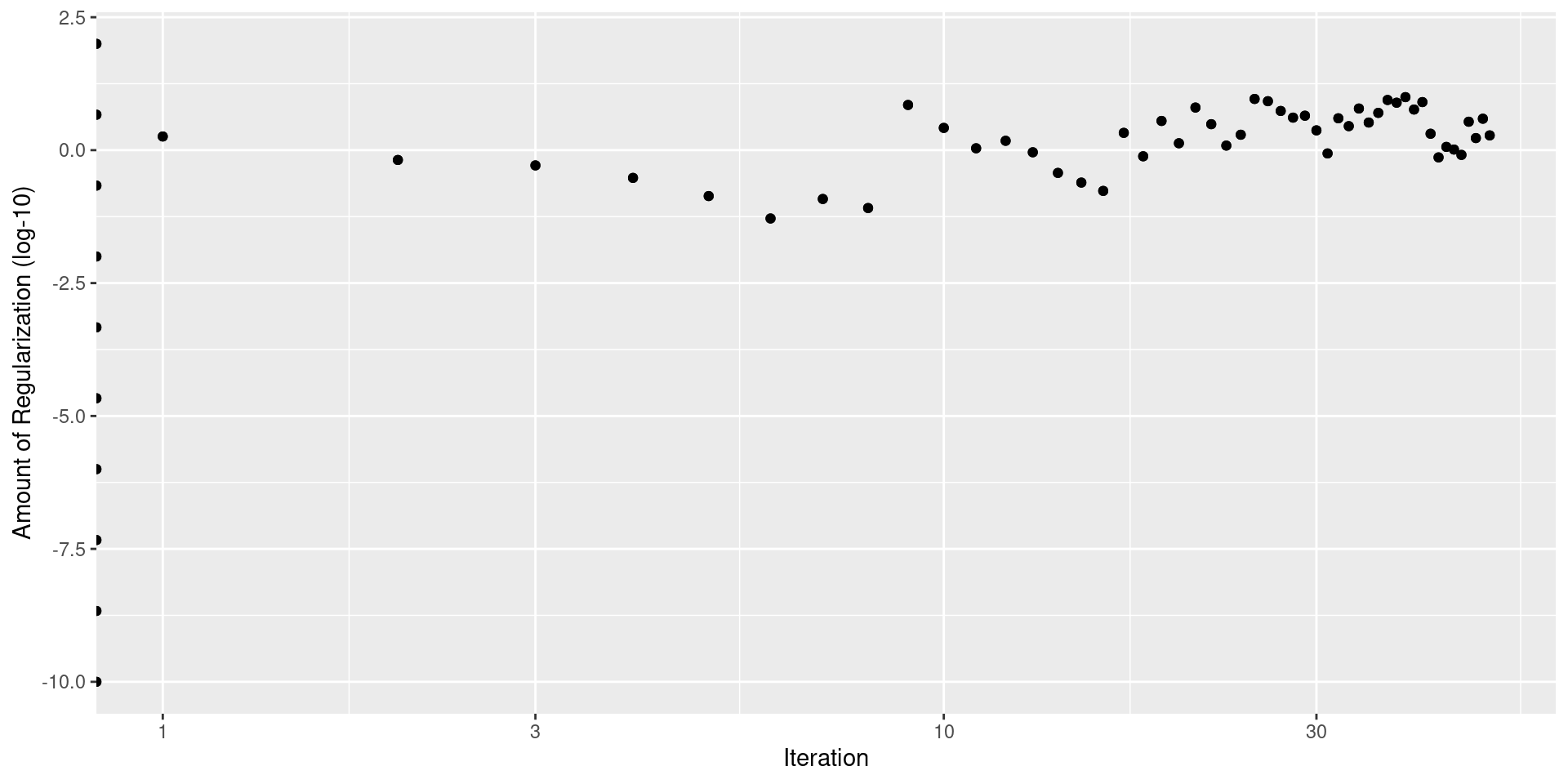

autoplot(lasso_sim_anneal, type = "parameters") +
  scale_x_continuous(trans = 'log10')

Simulated Annealing `tidymodels`

show_best(lasso_sim_anneal) |> kable()

penalty	.metric	.estimator	mean	n	std_err	.config	.iter
4.641589	rmse	standard	13.09389	20	0.3774972	initial_Preprocessor1_Model09	0
9.934398	rmse	standard	13.20114	20	0.2723052	Iter39	39
9.189444	rmse	standard	13.20896	20	0.2752983	Iter25	25
8.786187	rmse	standard	13.21407	20	0.2772191	Iter37	37
8.333199	rmse	standard	13.22037	20	0.2795509	Iter26	26

MATH 427: Regularization & Model Tuning

Computational Set-Up

Data: Candy

Data: Candy

Data Cleaning

Data Cleaning

Data Splitting

Model Tuning

Tuning Parameters

Question

Basic Idea

Grid Search

Grid Search

Grid Search in R

LASSO and Ridge in R

Create Recipe

Create workflows

Create Metric Set

Create Folds

Grid Search in R

Generate Grid

Regular Grid Search in R

Tune Models

Regular Grid Search in R

Visualizing Results: Ridge

Selecting Best Model: Ridge

Finalize Model

Visualizing Results: LASSO

Selecting Best Model: LASSO

Finalize Model

Using Parsimony as a Tie-Breaker

Selecting Best Model: Ridge

Visualizing Results: Ridge

Finalize Model

Visualizing Results: LASSO

Selecting Best Model: Ridge

Finalize Model

Using the Test Set as a Tie Breaker

Using the Test Set as a Tie Breaker

Good strategies

Iterative Methods (Bonus Content)

Brief Overview

Bayesian Search: GP

Bayesian Search: Acquisition Function

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Bayesian Search: tidymodels

Simulated Annealing

Simulated Annealing: tidymodels

Simulated Annealing tidymodels

Simulated Annealing tidymodels

Simulated Annealing tidymodels

Simulated Annealing: tidymodels

Simulated Annealing tidymodels

Simulated Annealing tidymodels

Simulated Annealing tidymodels

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Bayesian Search: `tidymodels`

Simulated Annealing: `tidymodels`

Simulated Annealing `tidymodels`

Simulated Annealing `tidymodels`

Simulated Annealing `tidymodels`

Simulated Annealing: `tidymodels`

Simulated Annealing `tidymodels`

Simulated Annealing `tidymodels`

Simulated Annealing `tidymodels`
